Power Take-Off Switches (PTO)

Our PTO Switches are rugged, ergonomic, and available in a sealed and standard current version, allowing you to choose what fits your application needs. The easy snap-in installation makes assembly simple and cost-effective.

FEATURES:

  • 10mA to 10A current ratings
  • Up to three independent poles
  • Rugged and ergonomic
  • Wiping contacts prevent carbon buildup and increase life
  • Simple and cost-effective snap-in installation
  • Multiple standard knob colors/graphics available

Models:

Sealed Universal
Basic
Momentary

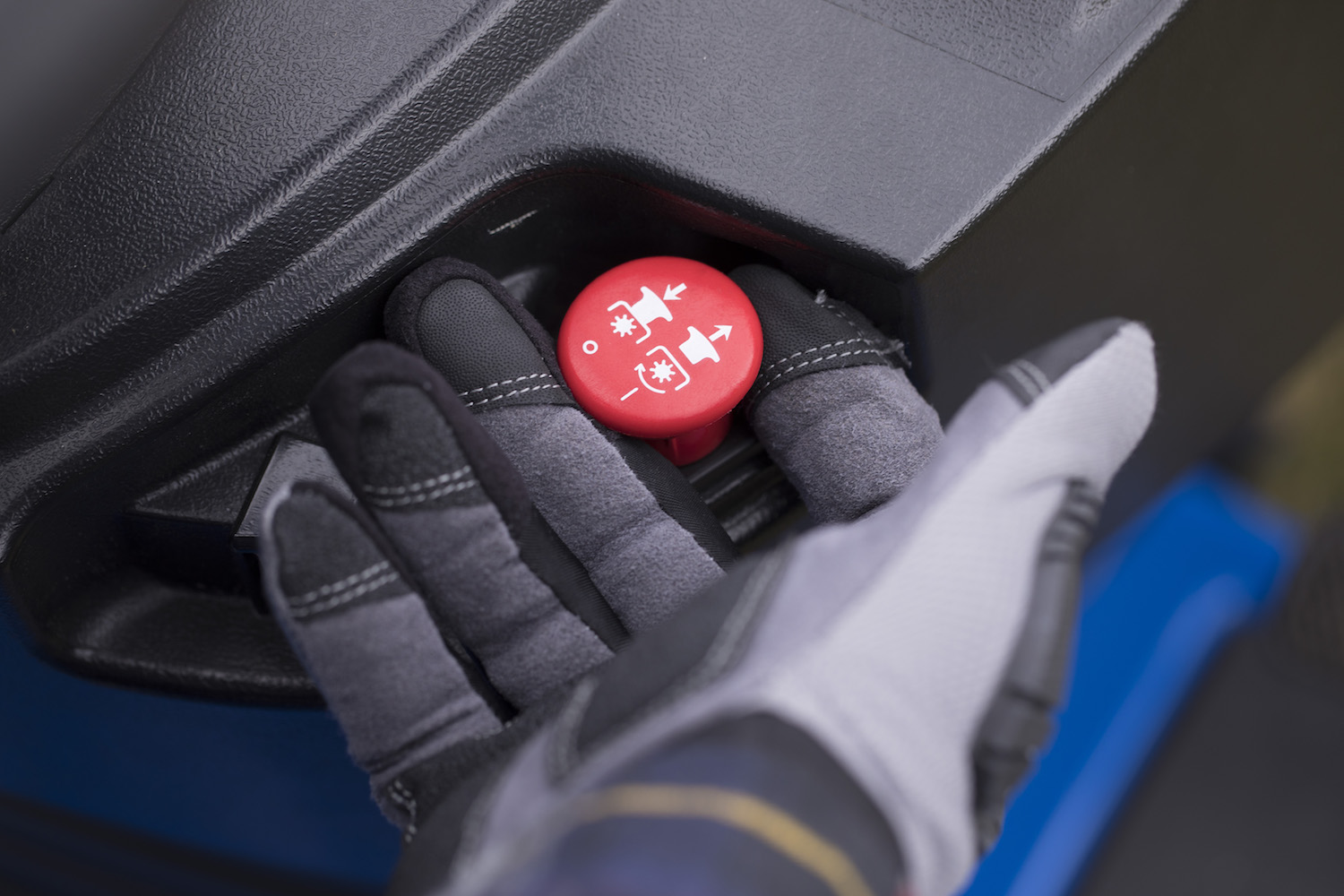

Sealed Universal PTO

Sealed from the Elements

Delta’s “New” Universal Sealed PTO is not only protected from the harshest environment by keeping out grass, water, oil and other contaminants, it’s also your “one-stop shop” with universal capabilities. One switch covers operating currents from 10mA to 10Amps and has a Molex 150 sealed connector with snap in mounting.

Benefits

  • An IP67 rating
  • Universal Application from 10mA to 10Amps
  • User-friendly and ergonomic styling that's fully customizable
  • Full autonomy, with no need for a controller
  • U.S. made quality
  • A rugged housing that resists shock/vibration
  • 3-Year Warranty

Electrical Specifications

Attribute
Specification
Electrical Life:Cycles Resistive: 100,000, Inductive: 40,000
Operating Voltage Range 9-16Vdc
Operating Current 10mA-10Amps
Contact Resistance 50mOhms max, New at 10mA, 12Vdc
Operating Temperature Range -40 °F to 185 °F (-40 °C to 85 °C)

Environmental Ratings

Exposure
Specification
Ingress Protection IP67, with sealed mating connector
Humidity 95% Relative Humidity, non-condensing
Pressure Wash Pressure wash per EP455-5.6 3000PSI, Front Surface Only
Chemical Resistance EP455 – 5.8 Brush: Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug Repellent DEET, Salt Water Solution, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach Disinfectant Spray, Mole Repellent, Bleach, Ammonia, Isopropyl Alcohol, Degreaser and Battery Acid

Configurations

Product Line
Part number
Electrical Config
Knob Style
Knob Color
IP67
App Prints
PTO - Sealed 6205-122A Universal 1.4" Diameter Red Yes
PTO - Sealed 6205-122B Universal 1.4" Diameter Red Yes
PTO - Sealed 6205-131A Universal 1.4" Diameter Yellow Yes
PTO - Sealed 6205-131B Universal 1.4" Diameter Yellow Yes
PTO - Sealed 6205-131C Universal 1.4" Diameter Yellow Yes

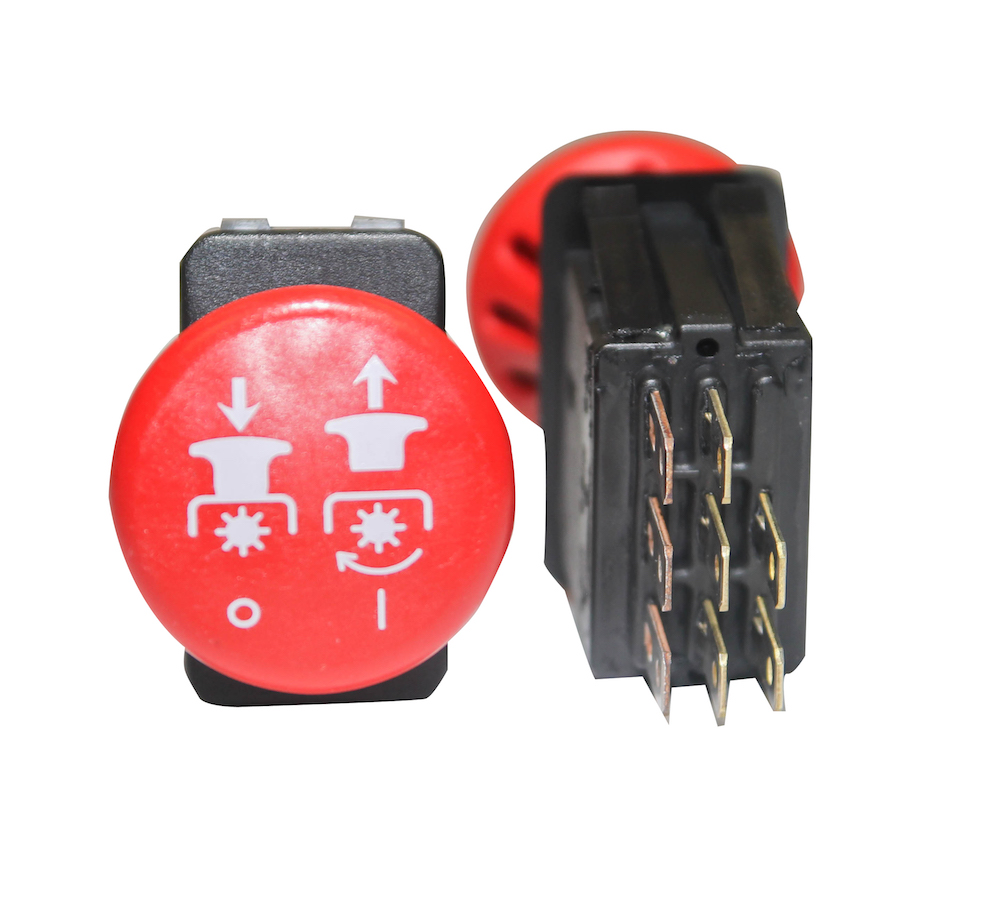

Basic Low amp PTO

Delta’s Basic PTO switches control switching for two independent circuits. This rugged and ergonomic design is a simple and cost-effective snap-in installation. They are fully customizable by knob/knob colors and graphics offerings. This non-sealed switch also offers a wiping contact that prevents carbon build-up and extends the life of product use. Typical applications include outdoor power equipment and industrial equipment.

Electrical Specifications

Attribute
Specification
Electrical Life:Cycles Resistive: 100,000, Inductive: 40,000
Operating Voltage Range 9-16Vdc
Operating Current 5 Amps
Contact Resistance @ Rated Load 50(mΩ)

Environmental Ratings

Exposure
Specification
Dust / Water Ingress IEC 60529, IP53
Operating Temperature Range -30 °F to 150 °F (-35 °C to 65°C)
Chemical Resistance EP455 – 5.8 Brush Chemicals Tested Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug repellent DEET, Salt Water, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach disinfectant spray, Fungicide, Mole repellant, Bleach, Ammonia, Degreaser, Battery Acid

Configurations

Product Line
Part number
Electrical Config
Knob Style
Knob Color
Graphic
Graphic Color
IP67
App Prints
PTO - Basic 6204-204 NO\-\DT 1.5" Diameter Red A White No
PTO - Basic 6204-206 NC\-\DT 1.5" Diameter Red B White No
PTO - Basic 6204-207 -\DT\DT 1.5" Diameter Yellow None - No
PTO - Basic 6204-208 -\DT\DT 1.5" Diameter Black None - No
PTO - Basic 6204-209 NC\-\DT 1.5" Diameter Red A White No
PTO - Basic 6204-210 -\DT\DT 1.5" Diameter Yellow B Black No
PTO - Basic 6204-211 -\DT\DT 1.5" Diameter Black B Silver No
PTO - Basic 6204-212 NC\-\DT 1.5" Diameter Yellow A Black No
PTO - Basic 6204-219 NC\-\DT 1.5" Diameter Yellow B Black No
PTO - Basic 6204-220 -\DT\DT 1.25" Diameter Red None - No
PTO - Basic 6204-303 NO\DT\DT 1.5" Diameter Black A White No
PTO - Basic 6204-308 NC\NO\DT 1.5" Diameter Black A White No
PTO - Basic 6204-313 NO\DT\NC 1.5" Diameter Black A Silver No
PTO - Basic 6204-315 NO\DT\DT 1.5" Diameter Yellow A Black No
PTO - Basic 6204-316 NO\DT\DT 1.5" Diameter Red A White No
PTO - Basic 6204-318 NO\DT\DT 1.5" Diameter Red B White No
PTO - Basic 6204-320 NO\DT\DT 1.25" Diameter Red None - No
PTO - Basic 6204-321 NO\DT\DT 1.25" Diameter Red C White No
PTO - Basic 6204-322 NC\DT\DT 1.25" Diameter Red C White No
PTO - Basic 6204-325 NC\DT\DT 1.25" Diameter Yellow None - No
PTO - Basic 6204-331 NO\DT\DT 1.25" Diameter Black D White No
PTO - Basic 6204-341 NO\DT\DT 1.5" Diameter Yellow B Black No
PTO - Basic 6204-342 NC\DT\DT 1.25" Diameter Yellow C Black No
PTO - Basic 6204-348 NO\DT\DT 1.5" Diameter Black H White No
PTO - Basic 6204-353 NC\DT\DT 1.25" Diameter Red None - No
PTO - Basic 6204-358 NC\DT\DT 1.5" Diameter Yellow B Black No
PTO - Basic 6204-362 NC\DT\DT 1.5" Diameter Yellow A Black No

Momentary PTO Switch

Our Momentary PTO Switch is the perfect solution for applications where circuits need to remain active only when the switch is actuated through continued, manual contact. These components are usually resting in a neutral position and only engages while in the up or down position, as opposed to a typical “on/off” switch, which latches in its set position. Momentary Switches may be normally open or normally closed.

Delta offers a 3-position version: Momentary up, non-momentary up, non-momentary down; And a 2-position version: Momentary up, non-momentary down. Each configuration is designed to fit your specific application.

Electrical Specifications

Attribute
Specification
Operating Voltage Range 9-16Vdc
Electrical Life:Cycles Resistive: 100,000, Inductive: 40,000
Operating Current 5 Amps
Contact Resistance @ Rated Load 50(mΩ)

Environmental Ratings

Exposure
Specification
Ingress Protection IEC 60529, IP53
Operating Temperature Range -30 °F to 150 °F (-35 °C to 65°C)
Chemical Resistance EP455 – 5.8 Brush Chemicals Tested Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug repellent DEET, Salt Water, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach disinfectant spray, Fungicide, Mole repellant, Bleach, Ammonia, Degreaser, Battery Acid

Configurations

Product Line
Part number
Electrical Config
Knob Style
Knob Color
Current Rating, Amps
# of Positions
Graphic
Graphic Color
IP67
App Prints
PTO - Momentary 6274-202 NO\-\DT 1.25" Diameter Yellow 5 3 C Black No
PTO - Momentary 6274-305 NO\DT\DT 1.25" Diameter Red 5 3 G White No
PTO - Momentary 6274-307 NO\DT\DT 1.5" Diameter Yellow 5 3 None - No
