Message Centers
Delta Systems’ Message Center Displays combine features from multiple gages into a single, easy-to-read interface that saves you space. Features like service reminders, run/PTO hours, battery state-of-charge, fuel level, and diagnostic codes keep equipment users appraised of machine performance. Snap-in mounting makes installation fast and ergonomic. IP67 sealed designs are ideal for indoor/outdoor use in open or closed cabs and are durable and dependable under the toughest conditions. Uses include gas and electric powered indoor and outdoor applications, such as:
- Outdoor Power Equipment
- Utility Vehicles
- Powersports
- Construction
- Farm & Agricultural
- Asphalt Pavers/Concrete Mixers
- Light Industrial
- Material Handling
- Off-Highway Vehicles
- Mining

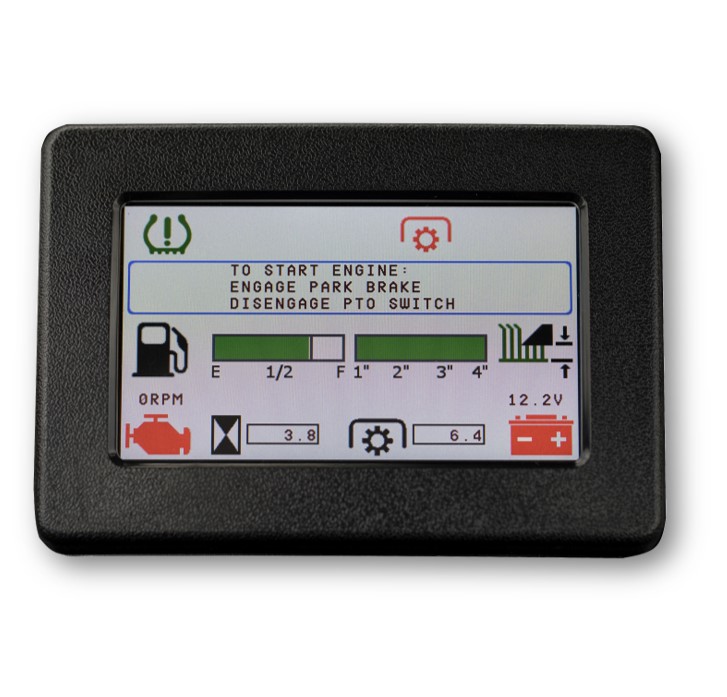

Delta Systems’ 4.3” Graphic Display provides operators with a full view of machine functionality. It is designed to work with non-CAN electrical systems, connecting directly to safety switches and magneto sense. The 24-bit RGB color TFT LCD with 480x272 resolution is anti-glare and readable in direct sunlight (1000 Nits brightness). Includes interface for NTSC rear backup camera display. Customizable screens and graphics are available.
Electrical Specifications
Attribute |
Specification |
|---|---|
| Operating Voltage Range | 9 - 16 VDC |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
Environmental Ratings
Exposure |
Specification |
|---|---|
| Ingress Protection | IP67 with mating connector |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -30 °C to 80 °C |
| Humidity | 90% RH Max |
| Chemical Resistance | Gasoline, Diesel, Hydraulic Oil, Engine Oil, Insect Killer, Weed Killer, Liquid Fertilizer, Mole Repellent, Battery Acid |
Delta Systems’ 3.5” Multi-Function Message Center & Controller displays run hours, PTO hours, engine speed, fuel level, battery level, and safety interlock status for the user, while taking inputs from the machine’s safety system and controlling the PTO clutch and starter solenoid.
Electrical Specifications
Attribute |
Specification |
|---|---|
| Operating Voltage Range | 9 - 16 VDC |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
Environmental Ratings
Exposure |
Specification |
|---|---|
| Ingress Protection | IP67 with mating connector |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -30 °C to 80 °C |
| Humidity | 90% RH Max |
| Chemical Resistance | Gasoline, Diesel, Hydraulic Oil, Engine Oil, Insect Killer, Weed Killer, Liquid Fertilizer, Mole Repellent, Battery Acid |
Delta Systems’ 2” Message Center Gauge features a backlit graphic LCD to display machine hours, diagnostic codes, battery state-of-charge, and other information sent over J1939 or CANopen. Move between screens using capacitive touch buttons. Includes an integral sealed connector.
AVailable Screens
The 2" Message Center has three top level screens, two second level screens, and one pop-up screen for the DTC's show below.
State of Charge Screen
Hour Meter Screen
Active DTC - Review Menu Screen
DTC Review Screen
No Active DTC's Screen
DTC Pop-up Screen
Electrical Specifications
Attribute |
Specification |
|---|---|
| Operating Voltage Range | 9 - 16 VDC |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
Environmental Ratings
Exposure |
Specification |
|---|---|
| Ingress Protection | IP67 with mating connector |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -30 °C to 80 °C |
| Humidity | 90% RH Max |
| Chemical Resistance | Gasoline, Diesel, Hydraulic Oil, Engine Oil, Insect Killer, Weed Killer, Liquid Fertilizer, Mole Repellent, Battery Acid |
