Meters
Delta Systems' meters are designed to provide helpful functionality to the end user while requiring a minimum amount of space. Hour meters track and record operating or “on” time to help the user properly maintain equipment. Multiple operating methods are available. Battery state-of-charge (SOC) meters display percentage of charge remaining. Two mounting styles are available: front panel mount snap-in and reverse panel mount clip-in. Meters have two unsealed ¼” spade terminals or an integral sealed 4-pin connector. Our meters are typically used for small engine-based or battery-powered electric products and applications, such as those used in:
- Outdoor Power Equipment
- Utility Vehicles
- Power Sports
- Construction
- Farm & Agricultural
- Light Industrial
- Material Handling
- Off-Highway Vehicles
CONTACT US To request datasheets, pricing, and additional information.
Key-On Hour Meters
Key-on hour meters accumulate and display time when the key is on the “on” position. LCDs has five 7-segment digits with 0.1-hour resolution. Features include assembly-friendly snap-in design, customizable graphics, and resettable service reminders.
Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.
Electrical Specifications
Attribute |
Specification |
|---|---|
| Operating Voltage Range | 9-16 VDC |
| Operating Current | 6mA Max @ 12 VDC, 25 °C |
| Clock Accuracy | ±5% Over Operating Temp, ±2% @ 25 °C |
Environmental Ratings
Exposure |
Specification |
|---|---|
| Ingress Protection | IEC 60529 IP67 |
| Operating Temperature | -30 – 70 °C |
| Storage Temperature | -40 – 85 °C |
| Operating Humidity | 66 °C, 95% RH, 18 Hrs |
| Salt Exposure | ASTM B117, 96 hours |
| Chemical Resistance | Oil, Diesel Fuel, Battery Acid, Antifreeze, Silicone Spray, Gasoline |
Configurations
Product Line |
Part number |
Digit Height |
Viewing Angle |
Operation |
Service Reminder |
Mounting Style |
Mating Connector |
Operating Voltage |
IP67 |
|---|---|---|---|---|---|---|---|---|---|
| Displays - Hour Meter | 2014-039 | 7mm | 12 O'Clock | Key On | Oil can icon every 50 hours for 2 hours or until reset | Front Panel Mount, Snap-in | Delphi 02962551 | 9-16 VDC | Yes |
| Displays - Hour Meter | 2014-040 | 7mm | 6 O'Clock | Key On | Oil can icon every 50 hours for 2 hours or until reset | Front Panel Mount, Snap-in | Delphi 02962551 | 9-16 VDC | Yes |
| Displays - Hour Meter | 2014-041 | 7mm | 12 O'Clock | Key On | Oil can icon every 20 hours for 2 hours or until reset | Front Panel Mount, Snap-in | Delphi 02962551 | 9-16 VDC | Yes |
Accessories
Part Number |
Description |
Use With |
Application Prints |
3D Models |
|---|---|---|---|---|
| 74965 | Mounting Hole Plug | 2014 Series Meters | download down arrow | |
| 972375 | Mounting Spacer | 2014 Series Meters | download down arrow | download down arrow |
Oil Pressure Sensing Hour Meters
Engine oil pressure sensing hour meters display and accumulate time when the key is on the “on” position and stops accumulating time when the oil pressure sense pin is closed to ground through the oil pressure switch. LCDs have five 7-segment digits with 0.1 hour-resolution. Has an IP67 rating and 3-year warranty.
Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.
Electrical Specifications
Attribute |
Specification |
|---|---|
| Operating Voltage Range | 9-16 VDC |
| Clock Accuracy | ±5% Over Operating Temp, ±2% @ 25 °C |
Environmental Ratings
Exposure |
Specification |
|---|---|
| Ingress Protection | IEC 60529 IP67 |
| Operating Temperature | -30 – 70 °C |
| Storage Temperature | -40 – 85 °C |
| Operating Humidity | 66 °C, 95% RH, 18 Hrs |
| Salt Exposure | ASTM B117, 96 hours |
| Chemical Resistance | Oil, Diesel Fuel, Battery Acid, Antifreeze, Silicone Spray, Gasoline |
Configurations
Product Line |
Part Number |
Digit Height |
Viewing Angle |
Operation |
Service Reminder |
Mounting Style |
Mating Connector |
Operating Voltage |
IP67 |
|---|---|---|---|---|---|---|---|---|---|
| Displays - Hour Meter | 2018-303 | 7mm | 12 O'Clock | Oil Pressure Sense | None | Reverse Panel Mount, Clip-in | TE Connectivity 184392-1 | 9-16 VDC | Yes |
Accessories
Part Number |
Description |
Use With |
Application Prints |
3D Models |
|---|---|---|---|---|
| 74965 | Mounting Hole Plug | 2014 Series Meters | download down arrow | |
| 972375 | Mounting Spacer | 2014 Series Meters | download down arrow | download down arrow |
Magneto/EFI Hour Meters
Magneto/EFI-compatible hour meters accumulate time when the engine is running. Magneto-sense and multi-sense versions are compatible with magneto pulses. Multi-sense versions are also compatible low-voltage square waves from fuel injection systems. Magneto-sense and multi-sense versions display time when the key switch is the on position. The magneto-powered version only displays time when the engine is running and is ideal for applications that have gas-powered engines but no onboard battery. LCDs have five 7-segment digits with 0.1-hour resolution. Other features include an assembly-friendly snap-in design, customizable graphics, an IP67 rating, and a 3-year warranty. Some models include a 12V power pass-thru pin or a 12VDC protected output to power a fuel solenoid (or other device) when the engine is running.
Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.
Electrical Specifications
Attribute |
2014-107 |
2014-333 |
2014-334 |
2014-338 |
|---|---|---|---|---|
| Operating Voltage Range | ±8-50 VDC, 9-55 VAC RMS >10 Hz, ±500 V Peak Magneto Pulse | 9-16 VDC | 9-16 VDC | 9-16 VDC |
| Operating Current | 10mA Max @ ±50 VDC, 25 °C | 6mA Max @ 12 VDC, 25 °C | 0.2 A max @ 9-16 VDC | 6mA Max @ 12 VDC, 25 °C |
| Protected 12V Output Current | N/A | 1.0 A max | N/A | N/A |
| Pass-Thru Pin Current | N/A | N/A | 3.5 A max | N/A |
| Magneto Voltage | ±400 V max | ±400 V max | ±400 V max | ±400 V max |
| EFI DC signal or AC square wave | N/A | N/A | 5-16 V | N/A |
| Clock Accuracy | ±5% Over Operating Temp, ±2% @ 25 °C | ±5% Over Operating Temp, ±2% @ 25 °C | +0%/-5% Over Operating Temp Range | ±5% Over Operating Temp, ±2% @ 25 °C |
Environmental Ratings
Exposure |
Specification |
|---|---|
| Ingress Protection | IEC 60529 IP67 |
| Operating Temperature | -30 – 70 °C |
| Storage Temperature | -40 – 85 °C |
| Operating Humidity | 66 °C, 95% RH, 18 Hrs |
| Salt Exposure | ASTM B117, 96 hours |
| Chemical Resistance | Oil, Diesel Fuel, Battery Acid, Antifreeze, Silicone Spray, Gasoline |
Configurations
Product Line |
Part number |
Digit Height |
Viewing Angle |
Operation |
Service Reminder |
Mounting Style |
Mating Connector |
Operating Voltage |
IP67 |
|---|---|---|---|---|---|---|---|---|---|
| Displays - Hour Meter | 2014-107 | 6mm | 12 O'Clock | Magneto Powered | None | Front Panel Mount, Snap-in | Delphi 02962551 | 8-50 VDC, 9-55 VAC RMS (>10 Hz) | Yes |
| Displays - Hour Meter | 2014-333 | 6mm | 12 O'Clock | Magneto Sense, Auxiliary Output | None | Front Panel Mount, Snap-in | TE Connectivity 184392-1 | 9-16 VDC | Yes |
| Displays - Hour Meter | 2014-334 | 6mm | 6 O’Clock | Magneto/EFI Sense | None | Front Panel Mount, Snap-In | TE Connectivity 184392-1 | 9-16 VDC | Yes |
| Displays - Hour Meter | 2014-338 | 6mm | 12 O'Clock | Magneto Sense | None | Front Panel Mount, Snap-in | TE Connectivity 184392-1 | 9-16 VDC | Yes |
Accessories
Part Number |
Description |
Use With |
Application Prints |
3D Models |
|---|---|---|---|---|
| 74965 | Mounting Hole Plug | 2014 Series Meters | download down arrow | |
| 972375 | Mounting Spacer | 2014 Series Meters | download down arrow | download down arrow |
Hour Meter/Tachometer
Delta Systems' hour meter / tachometer displays hours when they key switch is on the on or run position. It accumulates time and displays both time and engine speed (RPM) when the engine is running, which is sensed using a pickup wire wrapped around the spark plug wire. LCDs have five, 7-segment digits with 0.1-hour resolution and 1-RPM resolution. Other features include assembly-friendly snap-in design, customizable graphics, an IP67 rating, and a 3-year warranty.
Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.
Electrical Specifications
Attribute |
Specification |
|---|---|
| Operating Voltage Range | 9-16 VDC |
| Operating Current | 3-9mA Typ @ 12 VDC, 25 °C |
| Clock Accuracy | ±5% Over Operating Temp, ±2% @ 25 °C |
Environmental Ratings
Exposure |
Specification |
|---|---|
| Ingress Protection | IEC 60529 IP67 |
| Operating Temperature | -30 – 70 °C |
| Storage Temperature | -40 – 85 °C |
| Operating Humidity | 66 °C, 95% RH, 18 Hrs |
| Salt Exposure | ASTM B117, 96 hours |
| Chemical Resistance | Oil, Diesel Fuel, Battery Acid, Antifreeze, Silicone Spray, Gasoline |
Configurations
Product Line |
Part Number |
Digit Height |
Viewing Angle |
Operation |
Service Reminder |
Mounting Style |
Mating Connector |
Operating Voltage |
IP67 |
|---|---|---|---|---|---|---|---|---|---|
| Displays - Hour Meter | 2014-335 | 6mm | 6 O'Clock | Inductive Sense | None | Front Panel Mount, Snap-in | Delphi 02962551 | 9-16 VDC | Yes |
Accessories
Part Number |
Description |
Use With |
Application Prints |
3D Models |
|---|---|---|---|---|
| 74965 | Mounting Hole Plug | 2014 Series Meters | download down arrow | |
| 972375 | Mounting Spacer | 2014 Series Meters | download down arrow | download down arrow |

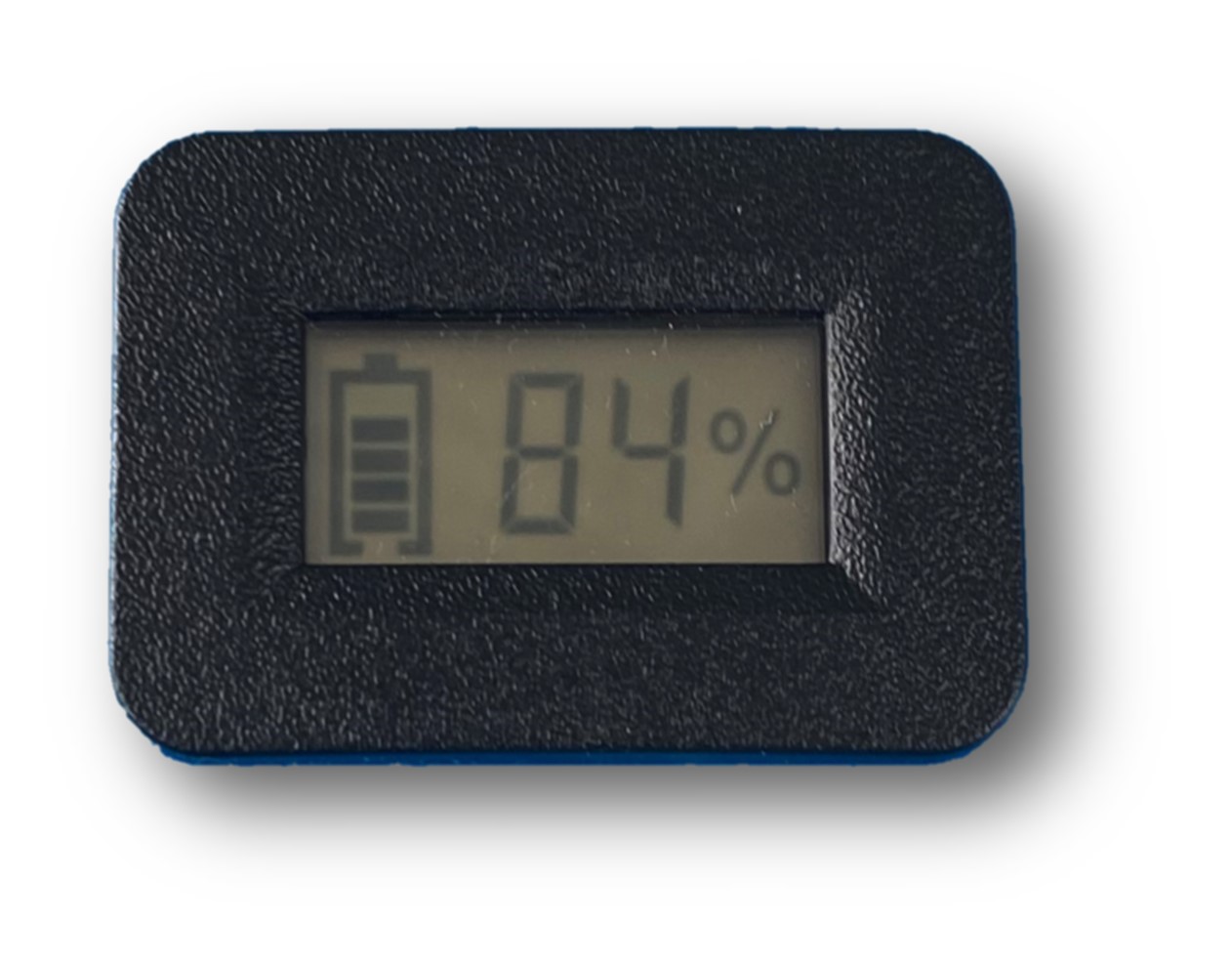

Battery State of Charge Meter
Delta Systems’ Battery State of Charge Meters measure the voltage of lead-acid batteries and displays state-of-charge to the user. Sealed to IP67, they are ideal for on- and off-road low-speed electric vehicles and other outdoor applications.
Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.
Electrical Specifications
Attribute |
Specification |
|---|---|
| Nominal Battery Voltage | 48 VDC |
| Current Consumption | 1-3 mA typical @ 48 VDC |
| Reverse Polarity Protection | -48 VDC for 5 min |
| Design Life, hours | 2000 |
Environmental Ratings
Exposure |
Specification |
|---|---|
| Ingress Protection | IEC 60529 IP67 |
| Operating Ambient Temperature Range | -30 – 70 °C |
| Storage Ambient Temperature Range | -40 – 85 °C |
| Chemical Resistance | Insect Killer, Weed Killer, Liquid Fertilizer, Mole Repellent, Battery Acid |
Configurations
Product Line |
Part Number |
Digit Height |
Viewing Angle |
Operation |
Service Reminder |
Mounting Style |
Mating Connector |
Operating Voltage |
IP67 |
|---|---|---|---|---|---|---|---|---|---|
| Displays - Hour Meter | 2014-500 | 8mm | 12 O'Clock | Voltage Sense | N/A | Front Panel Mount, Snap-in | TE Connectivity 184392-1 | 30-65 VDC | Yes |
Accessories
Part Number |
Description |
Use With |
Application Prints |
3D Models |
|---|---|---|---|---|
| 74965 | Mounting Hole Plug | 2014 Series Meters | download down arrow | |
| 972375 | Mounting Spacer | 2014 Series Meters | download down arrow | download down arrow |
