Advanced Displays

Delta Systems is already working on tomorrow’s Human Machine Interface and supports original equipment manufacturers during the early stages of development by offering innovative system solutions for integrating basic information into complex HMI systems. Our Advanced Displays’ customizable features provide ease of use and allow operators to simply access information. With so many resources at the consumer’s fingertips, it makes equipment troubleshooting a breeze.

7" Advanced Touch Screen Display
4.3" Advanced Touch Screen Display
4.3" Advanced Info Center Display

7" Advanced TOuch Screen Display (can-capable)

The most intelligent, intuitive dashboard display--at your fingertips

Delta Systems’ new CAN-bus capable 7” Advanced Touch Screen Display provides an operator-focused dashboard that keeps you in command with the efficiency, technology and sophistication expected of today’s modern equipment. This next generation Human Machine Interface (HMI) marks the future of machine maintenance and operator interface, providing at-a-glance notifications and simple operator interactivity.

As OEMs in various markets move toward complex equipment systems, today’s smart machines offer maximum functionalities and controls. Now, Delta Systems’ new CAN-bus capable 7-inch Advanced Touch Screen Display provides operators with a full-view of machine functionality in a seamless and intuitive user interface, making equipment monitoring and safeguarding a breeze.

Our Advanced Touch Screen Display’s customizable (screen/display) outputs include:

  • Multiple Pass Code Protection
  • Critical Diagnostics
  • Maintenance Reminders
  • Engine Monitoring
  • System Monitoring
  • And more!

this full-color advanced touch screen display promises:

  • Unparalleled Data Access - Provides quick notifications of malfunctions, errors, safety interlock status, maintenance reminders and more, for monitoring, regulating and preventative maintenance.
  • Efficiency - Gathers data from multiple sensors, replacing the need for various gauges and indicators.
  • Ease of Use - Offers a simplified cockpit with an intuitive and interactive operator experience, and is easily operated wearing gloves!
  • Rugged Durability - Features an IP67-rated, sealed design, assuring protection from water, dirt, oils and other contaminants that can reduce part life.
  • Customizable Features - Offers customizable software, allowing you to tailor the data and appearance to your needs, without the need for changing dashboard hardware.

technical specifications (typical application)

  • ARM Cortex—M7
  • Graphical operation based on true hardware acceleration
  • Storage depends on the application requirement
  • 7” TFT LCD display (800x480 pixels)
  • Luminance: 1000cd/m2
  • Viewing angle: 70 degree—any direction
  • Capacitive touch screen—Glove support & hardened glass
  • -20° C to 70° C operation

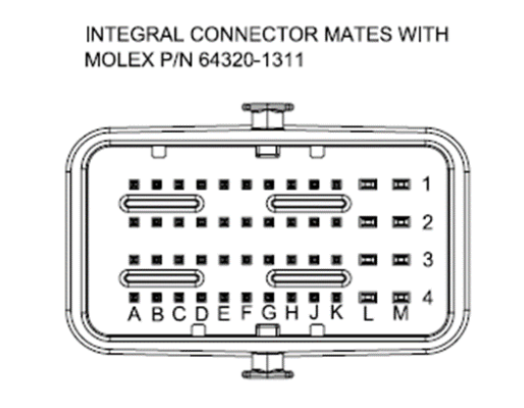

  • Connector: Up to 48-pin, depending on application requirement
  • USB Bootloader support
  • CAN: J1939 and CANopen
  • Bluetooth 5.x
  • Operating Voltage: Support for 9 to 16 VDC or 20 to 85 VDC system dependent

inputs

  • 2—Analog input with current sourcing capability
  • 15—Digital: 9 sinking, 6 sourcing
  • 2—Frequency
  • 1—Video, including 12V protected power source
  • 1—PWM

OUTputs

  • 2—100mA Low Side Driver
  • 1—500mA High Side Driver
  • 2—Frequency
  • 1 PWM

markets & applications

Delta systems 7" Advanced Touch Screen Display is designed for differentiated participation in many market segments and applications, including but not limited to:

  • Power Sports Equipment
  • Compact Equipment
  • Asphalt Pavers/Concrete Mixers
  • Light Industrial Equipment
  • Materials Handling Equipment
  • Heavy Equipment
  • Off Highway Vehicles
  • Mining Equipment
  • Crane trucks
  • Agricultural Machinery

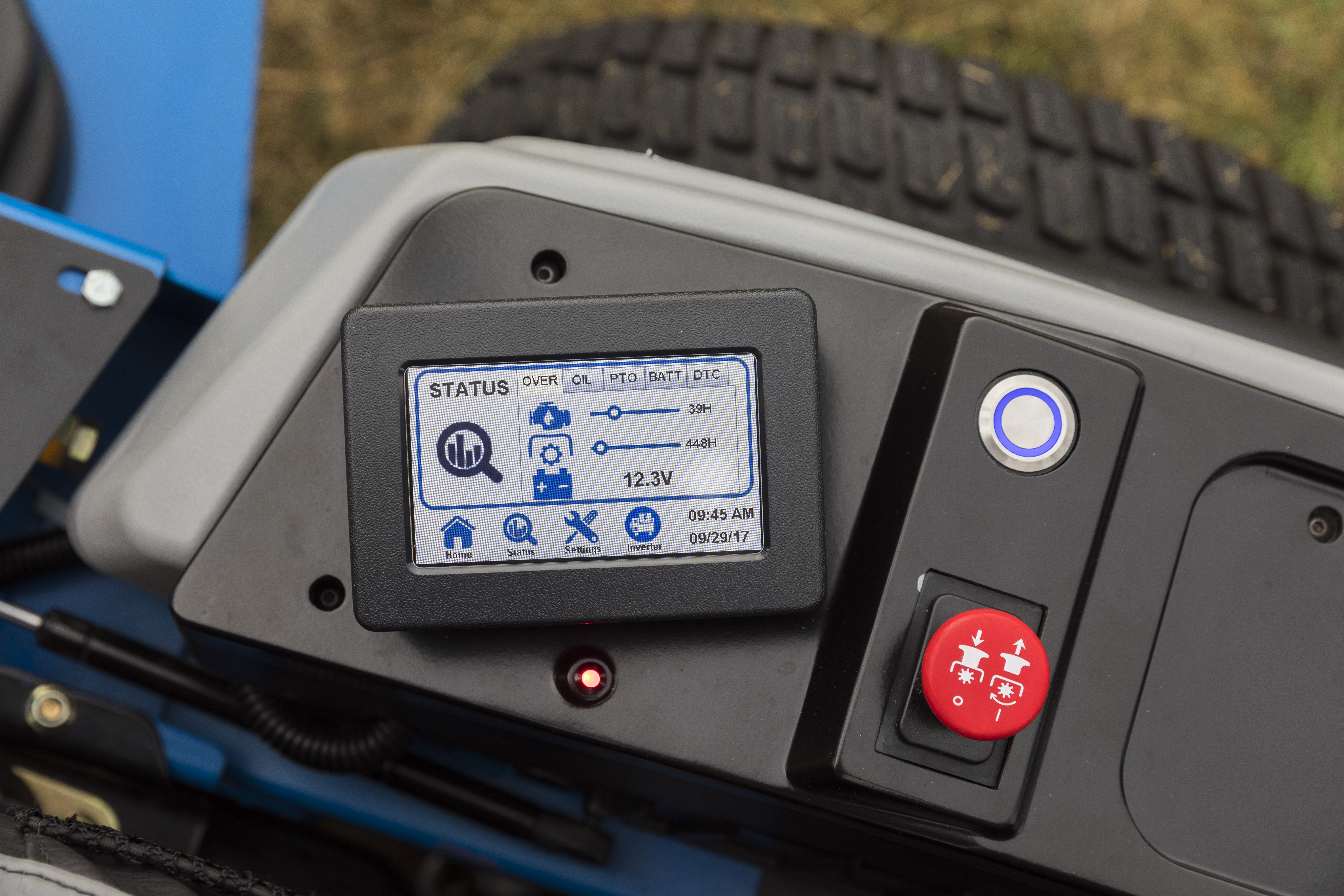

4.3" Advanced Touch Screen Display (Can-capable)

Intuitive & Intelligent

Delta Systems’ new CAN-bus capable 4.3" Advanced Touch Screen Display provides an operator-focused dashboard that keeps operators in command with the efficiency, technology and sophistication expected of today’s modern equipment. This next generation Human Machine Interface (HMI) marks the future of machine maintenance and operator interface, providing at-a-glance notifications and simple operator interactivity.

As OEMs in various markets move toward EFI engines and complex equipment systems, today’s smart machines offer maximum functionalities and controls. Now, Delta Systems’ new CAN-bus capable Advanced Touch Screen Display provides operators with a full-view of machine functionality in a seamless and intuitive user interface, making equipment troubleshooting and safeguarding a breeze.

full-color Display promises

  • Unparalleled Data Access – Provides quick notifications of malfunctions, errors, safety interlock status, maintenance reminders and more, for monitoring, regulating and preventative maintenance.
  • Efficiency – Gathers data from multiple sensors and critical engine systems, replacing the need for various gauges and indicators.
  • Ease of Use – Offers a simplified cockpit with an intuitive and interactive operator experience, and is easily operated wearing gloves!
  • Rugged Durability – Features an IP67-rated, sealed design, assuring protection from water, dirt, oils and other contaminants that can reduce part life.
  • Customizable Features – Offers customizable software, allowing you to tailor the data and appearance to your needs, without the need for changing dashboard hardware.

The Perfect Solution for Next Level Growth

Delta Systems’ Advanced Touch Screen Display is also the user interface platform for additional features, including:

  • CAN-Bus communication integration
  • Passcode
  • Service reminders
  • Battery Voltage Gauge
  • Fuel Gauge
  • Clock
  • Object Detection
  • Power Inverter integration
  • And more!

Markets & Applications

Delta Systems’ Advanced Touch Screen Display is designed for differentiated participation in many market segments and applications, including, but not limited to:

  • Outdoor Power Equipment
  • Power Sports Equipment
  • Agricultural Machinery
  • Light Industrial Equipment
  • Material Handling Equipment
  • Heavy Equipment
  • Off Highway Vehicles
  • Mining equipment
  • Crane Trucks
  • Asphalt Pavers/Concrete Mixers

Technical specifications

  • Microcontroller: STMicroelectronics (180Mhz) High Performance, with Chrom-ART Accelerator for direct TFT connection
  • Processor: 32-bit Cortex M4 optimized for discrete processing
  • Operating Voltage: 9.0V 16.0V
  • Reverse Polarity Protection: Yes
  • Safety interlock monitor
  • Operating Temperature Range: -20 °C to 70 °C
  • Storage Temperature Range: -30 °C to 80 °C
  • Humidity: 95% RH
  • Ingress Protection IP67, with mating connector
  • Type: Snap-In, Panel Mount, from front
  • Graphic display: 4.3"
  • Sunlight Readable: 1000Nits
  • Customizable Graphics
  • TOuch Screen
  • J1939CAB-bus capable for engine diagnostics

Advanced Touch Screen Features:

  • 4.3”, Thin Film Transistor (TFT) Display
  • Resolution: 480 x 272
  • 24-bit RGB Color Interface
  • Anti-Glare

outputs include

  • Safety interlock
  • Position sensing
  • Engine Monitoring
  • Diagnostics
  • Starting Systems
  • System Monitoring

Reach out today to learn more about our customizable touch screen, CAN-capable solutions!

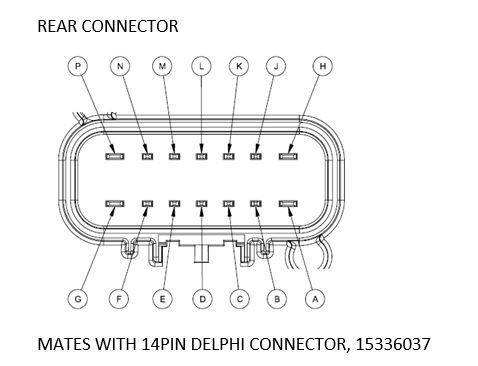

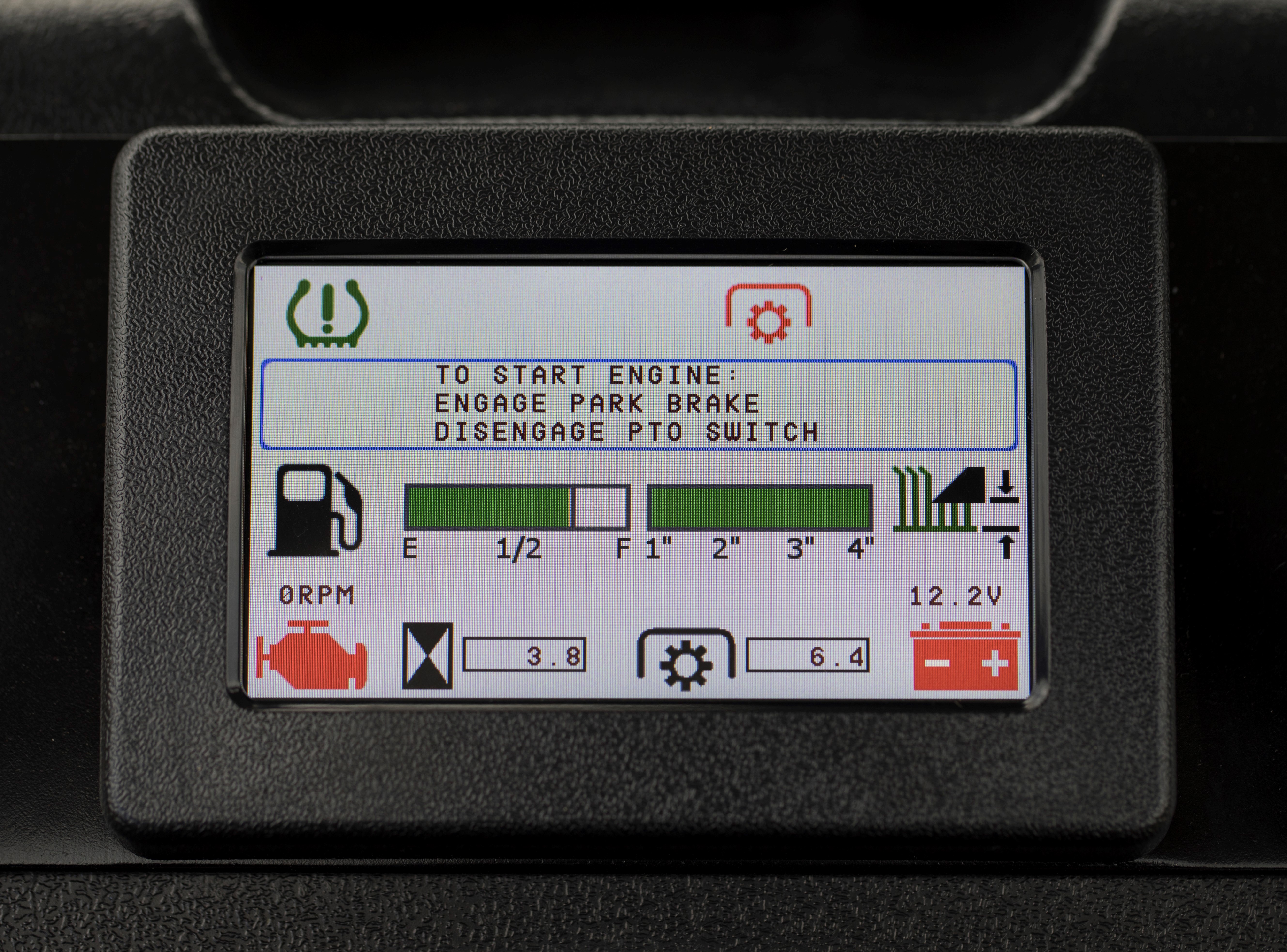

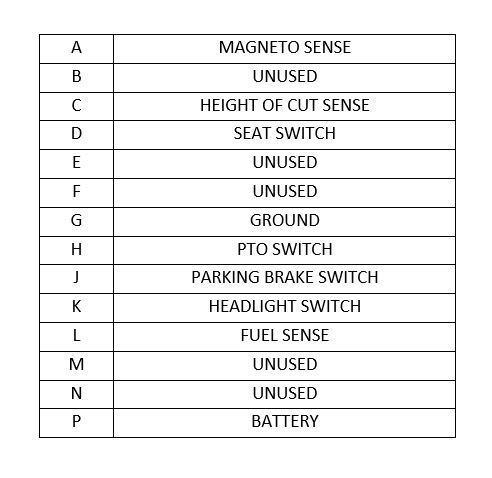

4.3" Advanced Info Center Display

At a Glance & In Clear Sight

Delta Systems’ new 4.3" Advanced Info Center Display provides an operator-focused dashboard that keeps you in command with the efficiency, technology and sophistication expected of today’s modern equipment. This next generation Human Machine Interface (HMI) marks the future of machine maintenance and operator interface, providing at-a-glance notifications and simple operator interactivity.

The New Advanced Info Center Display provides operators with a full-view of machine functionality in a seamless and intuitive user interface, making equipment troubleshooting and safeguarding a breeze. This info center is designed for switch/relay logic control, providing an interface to switches, sensors, magneto and rear backup cameras. The display is also enabled with Bluetooth® connectivity!

full-color Display promises

  • Unparalleled Data Access – Provides quick notifications of malfunctions, errors, safety interlock status, maintenance reminders and more, for monitoring, regulating and preventative maintenance.
  • Efficiency – Gathers data from multiple sensors, replacing the need for various gauges and indicators. Ease of Use – Offers a simplified cockpit with an intuitive and interactive operator experience.
  • Rugged Durability – Features an IP67-rated, sealed design, assuring protection from water, dirt, oils and other contaminants that can reduce part life.
  • Full Flexibility – Offers customizable software, allowing you to tailor the data and appearance to your needs, without the need for changing dashboard hardware.

The Perfect Solution for Next Level Growth

Delta Systems’ Advanced Info Center Display is also the user interface platform for additional functionality, including:

  • Bluetooth® enabled connectivity
  • Rear Backup Camera
  • Tire Pressure Monitoring System via Bluetooth®
  • Mower deck sensing (in lawn equipment applications)
  • And more!

Technical Specifications

  • Operating Voltage: 9.0V - 16.0V
  • Reverse Polarity Protection: Yes
  • Safety Interlock Monitor
  • Operating Temperature Range: -20 °C to 70 °C
  • Storage Temperature Range: -30 °C to 80 °C
  • Humidity: 95% RH
  • Ingress Protection IP67, with mating connector
  • Type: Snap-In, Panel Mount, from front
  • Graphic Display: 4.3"
  • Sunlight Readable
  • Customizable Graphics

Markets & Applications

Delta Systems’ Advanced Info Center Display is designed for differentiated participation in many market segments and applications, including, but not limited to:

  • Outdoor Power Equipment
  • Power Sports Equipment
  • Agricultural Machinery
  • Light Industrial Equipment
  • Material Handling Equipment
  • Heavy Equipment
  • Off Highway Vehicles
  • Mining equipment
  • Crane Trucks
  • Asphalt Pavers/Concrete Mixers

outputs include

  • Safety interlock
  • Engine Monitoring
  • Starting Systems
  • System Monitoring

Display features

  • 4.3”, Thin Film Transistor (TFT) Display
  • Resolution: 480 x 272
  • 24-bit RGB Color
  • Interface Operating Temperature: -20 to 70°C
  • Anti-Glare
